Tethered Station: TS-3-6S and TS-3-12S
Tethered Station is patented technology of Iterum Ac Melius Company. Patent No.: 309014
Description

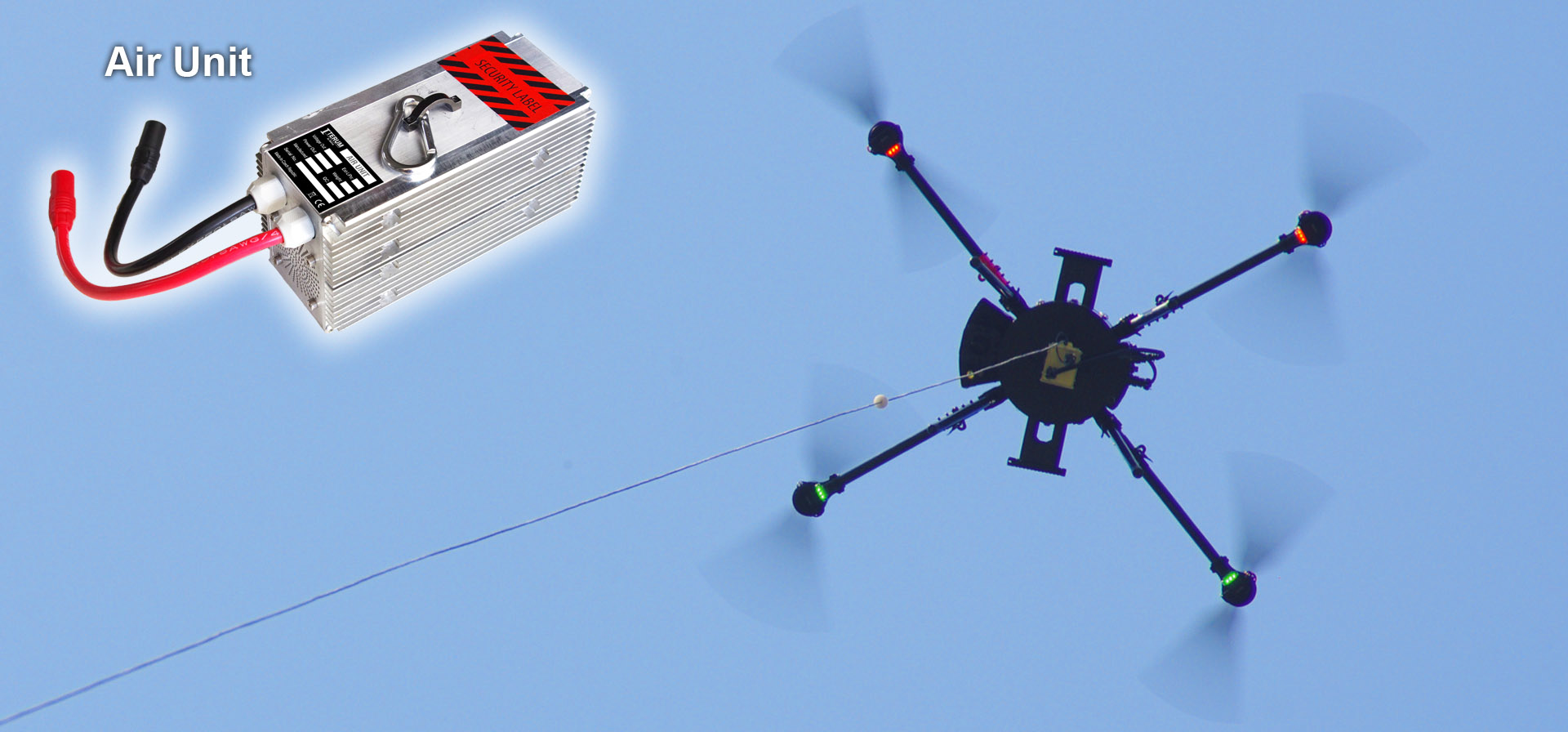

The Tethered Station is equipped with a cable (for powering and one (or two, if applicable) optical fibre single node and winch, which allows you to launch the drone up to 49 or 100 m or more according of clients order (depending on the type of drone and its load capacity). The cable powers the drone motors and at the same time, using an internal system, recharges the batteries in the second branch. The drone can therefore fly for a virtually unlimited time.
Cable with optical fibre has minimal bounding radius 40mm!!!
Note: Do not unwind the cable more than the colour mark.
The unwinding and rewinding of the cable in the Tethered Station is controlled by a computer, which evaluates the fluctuations in the pulling force and thus keeps the cable always at optimal tension. The computer is also able to compensate the effect of wind force and distinguish it from the movement of the drone up or down

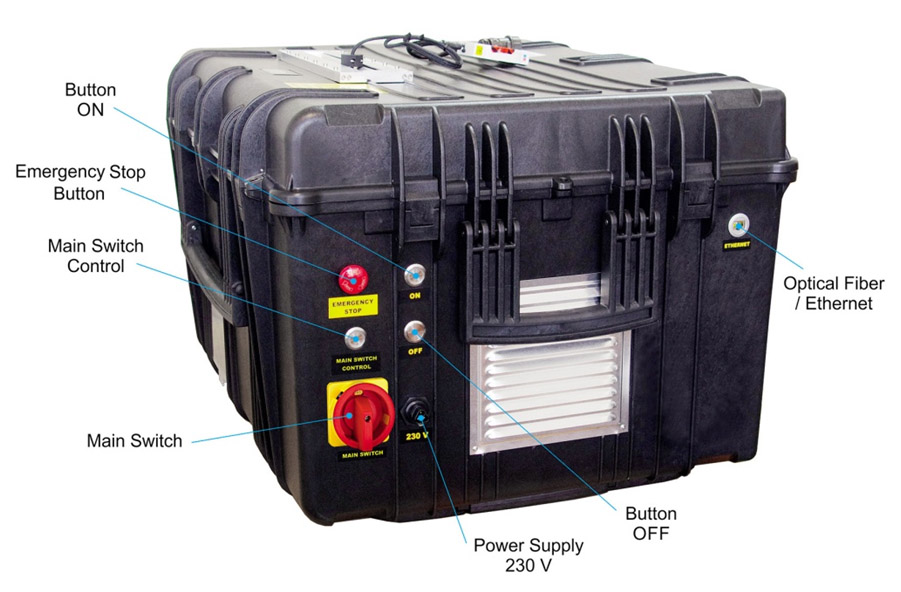

All functions of the Tethered Station are fully automatic, and the entire power station is controlled by a single ON and OFF buttons and also by Emergency Stop button. The Main switch serve for switching TS ON before work and OFF after work.
Data
|
Standard Cable length 100m, Power socket 230V. TS-3-6S, power socket 230V/16A. TS is IP53. TS-3-12S, power socket 230V/16A. TS is IP53. |
 |
