Scout Mk. VII
Description
Scout is the ultimate multipurpose Remotely Operated Aerial Vehicle for commercial use. Its four enlarged highly powered rotors were designed to enable the Pilot in Command to fly for an extended amount of time with various medium payloads. Thanks to Scout modular quick release Picatiny standard system, there is no limit to the amount of payload that can be used. Payload operated can be up to 4kg. Due to high battery capacity (10Ah/50V), users can transport payload to a long distance. Drone construction is extremely durable, and all components are military grade. Drone hood is made from Kevlar composite.
General features
Robust carbon fiber and Kevlar frame
Up to 4 kilograms useful payload
Up to 30 minutes no payload flight time
10 km / 20 km range options
Dust and rain resistant (IP66)
Single or dual operator setup
ADS-B ready transponder
AES256 encrypted radio link
Triple redundant autopilot
Dual GNSS GPS
G4 module is available on request. It is connecting drone with cloud server. GSM LTE signal is necessary in the mission location.
Frequency band and encryption fordrones
Unit H16
-Transmission distance 10 km (H16);30km(H16 pro)
-Receiver sensitivity 20DB@CE/23DB@FCC
-Working Frequency 2.400~2.483GHZ
-Bandwidth20MHz
-Frequency hopping Brand new
-Radio link encryption AES 256
GPS Antijamming (on request)
-Protected frequency: GPS L1 (C/A Code)
-Passthrough frequencies: GPS L2 & GlonassG1
-Minimal latency: 100ns ±15ns (constant)
-Insertion loss: ±2dB
Drone to Cloud server encrypted VPN tunnel – AES 256 (if applicable)
Specifications
Weights
Droneweight incl. batteries 11.7 kg
Maximum gross for takeoff 17 kg (recommended 15.7 kg)
Maximum payload 5.3 kg
Drive
Energy type Electric
Number of motors 4
Motor type Direct drive BLDC outrunner, 100 kV
Operating voltage 12S (50V)
Motor max continuous Power 2760 W
Idle current 0.4 A
Number of ESCs 4
Max continuous current draw 57 A
Propeller
Material Carbon fiber plus epoxy
Propeller setup Surface Glossy
Propeller type 23*8.8 inches
Avionics
Flight controller CUAV X7+
Operating temperatures -20°C to + 85°C
Flight battery
Battery Li-pol 10 Ah (2 serial)
Nominal battery voltage 48 V
Minimum battery quantity 4x double battery pack serial
Maximum battery voltage 52 V
Minimum average battery voltage 42 V
Flight times
These flight times are representations of the typical flight time in normal conditions and depends on several factors. The conditions in which these flight times have been tested are at 20°C ambient temperature, a nominal wind speed of 8 knots (4 m/s) while hovering at a height of 5 meters above ground at the 300m above sea level. Flight time is measured from full batterie to automatic lend at the voltage 42.3 V.
Frame dimensions
Rotor to rotor diagonal 1030 mm
Diameter with propellers 1605 mm
Height up to payload quick release NA
Width between centers od motors 730 mm
Length between centers of motors 730 mm
Folded frame dimension
Length 760 mm
Width 300 mm
Height 310 mm
Weather limitations
Maximum operating temperature +50°C
Minimum operating temperature -15°C
Maximum flight endurance no payload 30 min
Maximum wind speed 28 knots (15m/s)
Maximum wind gusts 35 knots (18 m/s)
Maximum precipitation Moderate rain conditions
Maximum downfall 10-20 mm/h
Flight limitations
Maximum flight speed 18 m/s
Flight modes GPS Loiter mode – Attitude hold mode – Auto mode – Stabilize
Typical ascent 8 m/s
Typical descent 8 m/s
Hovering accuracy Vertical 0.5m/ Horizontal 0.5m
RTL cruise speed 5 m/s
Accessories
The Scoutquadcopter drone has a wide array of accessories to configure to your needs. Because drone is especially intended for reconnaissance, main specific payload are cameras. Depending on the mission, there are options to choose from for controlling and transporting. Payloads are intentionally left out of this list as they can be configured independently of the platform.

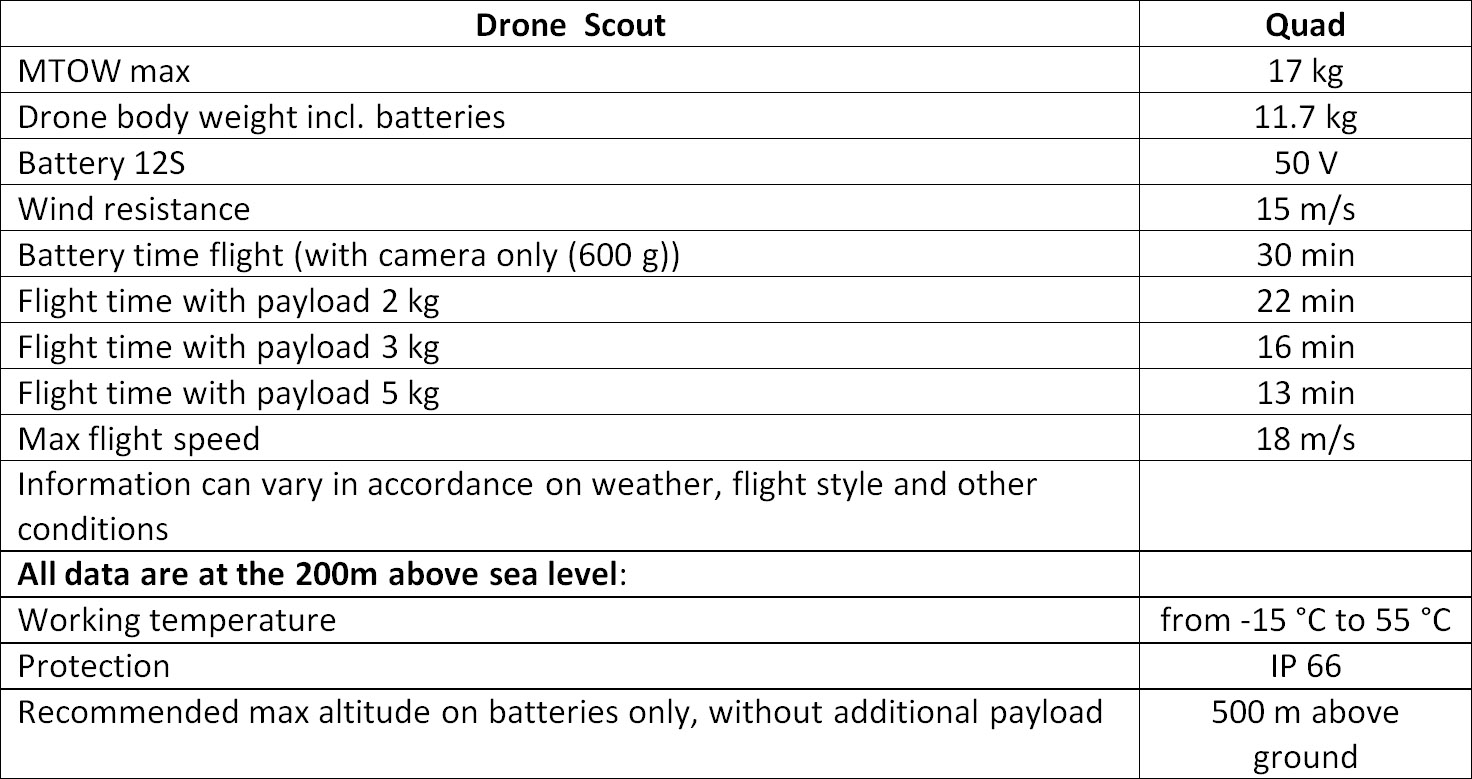

Tables with detailed technical specification:
